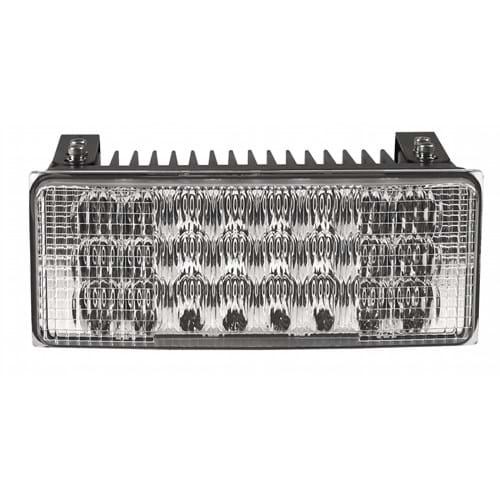

CREE LED Center Headlamp, Flood Beam, 9600 Lumens
HA232454

Product Notes:
This multi-functional lamp brings the range of the flood lamp and the focus of the spot lamp into one powerful package!

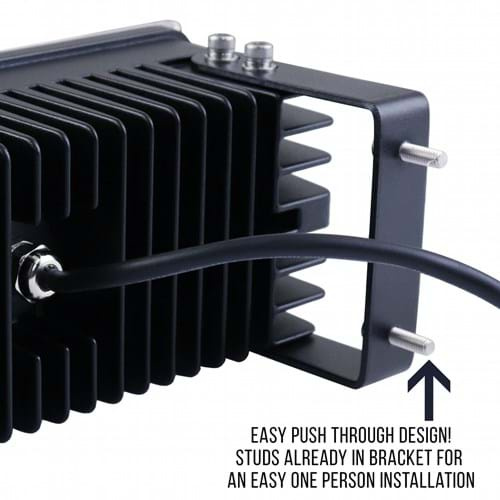

  • Studs already in the bracket for an easy one-person installation
  • Mounts flush for a clean, consistent look

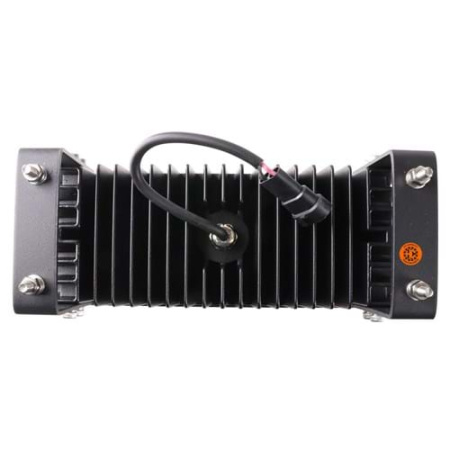

  • Larger cooling fins to dissipate heat to protect from melting and malfunction
  • LEDs provide you with triple the light output
  • Plug & play connection makes installation a breeze
  • Made of polycarbonate material to maintain the color and strength of the lenses over time
  • IP69 waterproof rating protects against dust and beyond 3ft of water immersion
  • Recommended for off-road applications

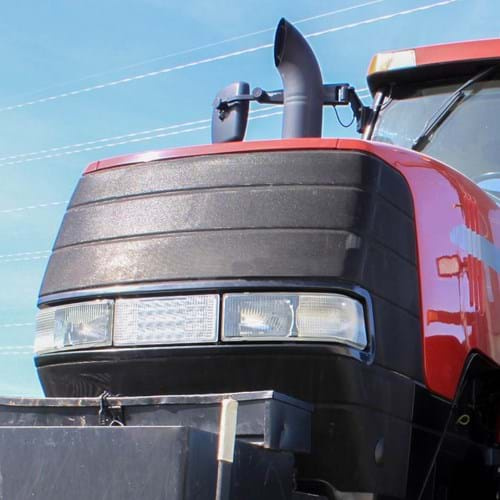

The HA232454 CREE LED Center Headlamp, Flood Beam, 9600 Lumens fits equipment brands such as: Case IH, Steiger

Product Specs

  • Amps (@12V): 10
  • Beam Style: Flood
  • Dimensions: 10.25" x 4.25"
  • Diode Manufacturer: CREE
  • Installation: Plug & Play Connection
  • Lens Material: Polycarbonate
  • New/Reman: New
  • Raw Lumens: 9600
  • Shape: Rectangular
  • Sold As: Each
  • Volts: 9-32V
  • Warranty: 1 Year
  • Waterproof Rating: IP69K
  • Watts: 120

Cross Reference Numbers:
232454A1, 232454A2, 232455A2

Add To Cart
Price:
$154.29
Qty:
This part fits these machines

Make a selection to see related parts for that machine.

* See model notes below

Model Specific Notes:
· Case IH STX480: This Machine is Equipped w/ 2 Center Lamps, Order Qty. of 2. Also available in Kit HA87429393 KIT
· Case IH STX530: This Machine is Equipped w/ 2 Center Lamps, Order Qty. of 2. Also available in Kit HA87429393 KIT
· Steiger 480: This Machine is Equipped w/ 2 Center Lamps, Order Qty. of 2. Also available in Kit HA87429393 KIT
· Steiger 485: This Machine is Equipped w/ 2 Center Lamps, Order Qty. of 2. Also available in Kit HA87429393 KIT
· Steiger 530: This Machine is Equipped w/ 2 Center Lamps, Order Qty. of 2. Also available in Kit HA87429393 KIT
· Steiger 535: This Machine is Equipped w/ 2 Center Lamps, Order Qty. of 2. Also available in Kit HA87429393 KIT
