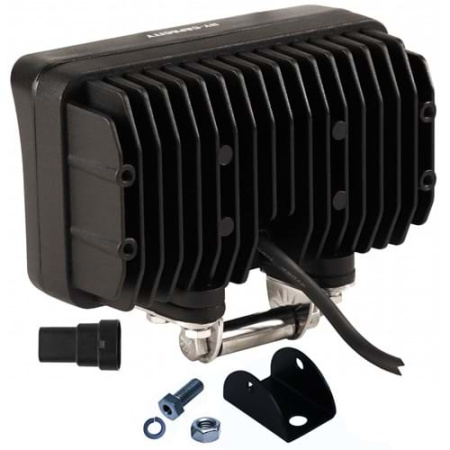

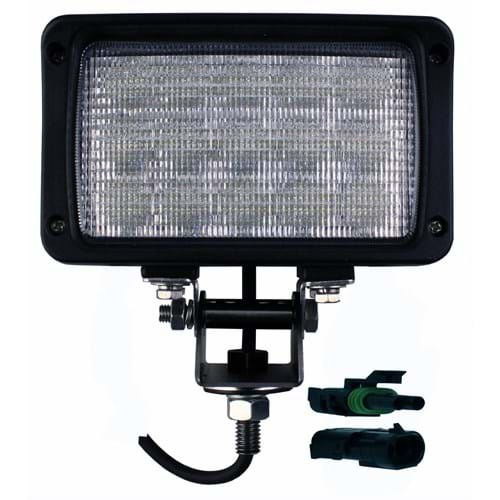

Bridgelux LED Wide Flood Beam Light, 3500 Lumens
HAZAA7189850

Product Notes:
  • 80% more energy efficient than halogen lights for a longer bulb life
  • Flood beams are excellent work lights that illuminate wide and short areas, giving great medium range visibility
  • Connector Leads installed. Minor modifications required

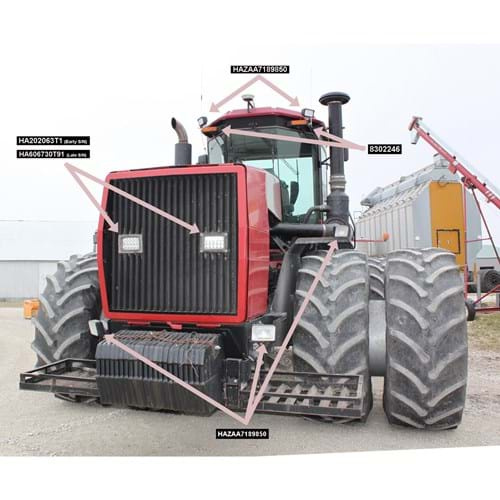

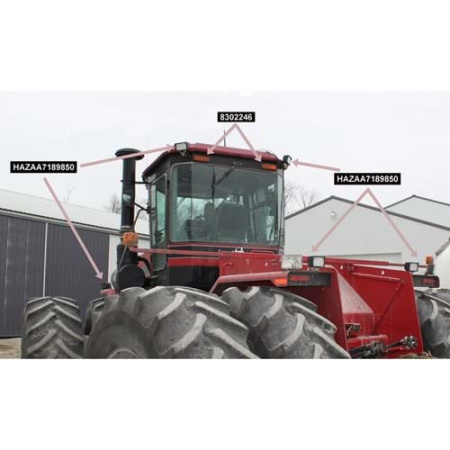

  • Install this light where you need it. Possible installation locations include Cab Front, Cab Rear, and Fender Rear
  • Made of polycarbonate material to maintain the color and strength of the lenses overtime
  • IP67 waterproof rating protects against dust and 3ft of water immersion
  • Recommended for off-road applications
The HAZAA7189850 Bridgelux LED Wide Flood Beam Light, 3500 Lumens fits equipment brands such as: Case, Case IH, Steiger

Product Specs

  • Amps (@12V): 3.75
  • Beam Style: Flood
  • Dimensions: 6" x 3.5"
  • Diode Manufacturer: Bridgelux LED
  • Installation: Connector Leads Installed; Minor Modifications Required
  • Lens Material: Polycarbonate
  • New/Reman: New
  • Raw Lumens: 3500
  • Shape: Rectangular
  • Sold As: Each
  • Volts: 9-32V
  • Warranty: 1 Year
  • Waterproof Rating: IP67
  • Watts: 45

Cross Reference Numbers:
20-1730T91, A165347, A177347, HAZAA71898, ZAA7189850

Add To Cart
Price:
$94.74
Qty:
This part fits these machines

Make a selection to see related parts for that machine.

* See model notes below

Model Specific Notes:
· Case 1896: Cab Front, Fender Rear
· Case 2090: Cab Front, Fender Rear
· Case 2094: Cab Front, Fender Rear
· Case 2096: Cab Front, Fender Rear
· Case 2290: Cab Front, Fender Rear
· Case 2294: Cab Front, Fender Rear
· Case 2390: Cab Front, Fender Rear
· Case 2394: Cab Front, Fender Rear
· Case 2594: Cab Front, Fender Rear
· Case 3294: Cab Front, Fender Rear
· Case 3394: Cab Front, Fender Rear
· Case 3594: Cab Front, Fender Rear
· Case 4490: Cab Front, Fender Rear
· Case 4494: Cab Front, Fender Rear
· Case 4690: Cab Front, Fender Rear
· Case 4694: Cab Front, Fender Rear
· Case 4890: Cab Front, Fender Rear
· Case 4894: Cab Front, Fender Rear
· Case 4994: Cab Front, Fender Rear
· Case IH 9110: Cab, Fender & Frame Mount
· Case IH 9130: Cab, Fender & Frame Mount
· Case IH 9150: Cab, Fender & Frame Mount
· Case IH 9170: Cab, Fender & Frame Mount
· Case IH 9180: Cab, Fender & Frame Mount
· Case IH 9210: Cab, Fender & Frame Mount
· Case IH 9230: Cab, Fender & Frame Mount
· Case IH 9250: Cab, Fender & Frame Mount
· Case IH 9260: Cab, Fender & Frame Mount
· Case IH 9270: Cab, Fender & Frame Mount
· Case IH 9280: Cab, Fender & Frame Mount
· Case IH 9310: Cab, Fender & Frame Mount
· Case IH 9330: Cab, Fender & Frame Mount
· Case IH 9350: Cab, Fender & Frame Mount
· Case IH 9370: Cab, Fender & Frame Mount
· Case IH 9380: Cab, Fender & Frame Mount
· Case IH 9390: Cab, Fender & Frame Mount
· Steiger Bearcat 1000 Series: Fender
· Steiger Bearcat Series III: Fender
· Steiger Bearcat Series IV: Fender
· Steiger CM325 Panther: Fender
· Steiger CM360 Panther: Fender
· Steiger Cougar 1000 Series: Fender
· Steiger Cougar Series III: Fender
· Steiger Cougar Series IV: Fender
· Steiger CP1325 Panther: Fender
· Steiger CP1360 Panther: Fender
· Steiger CP1400 Panther: Fender
· Steiger CR1225 Cougar: Fender
· Steiger CR1280 Cougar: Fender
· Steiger CS360 Panther: Fender
· Steiger KM225 Bearcat: Fender
· Steiger KM280 Cougar: Fender
· Steiger KM325 Panther: Fender
· Steiger KM360 Panther: Fender
· Steiger KP1325 Panther: Fender
· Steiger KP1360 Panther: Fender
· Steiger KP1400 Panther: Fender
· Steiger KR1225 Cougar: Fender
· Steiger KR1280 Cougar: Fender
· Steiger KS280 Cougar: Fender
· Steiger KS325 Panther: Fender
· Steiger KS360 Panther: Fender
· Steiger Lion 1000 Series: Fender
· Steiger Panther 1000 Series: Fender
· Steiger Panther Series III: Fender
· Steiger Panther Series IV: Fender
· Steiger PT225 Bearcat: Fender
· Steiger PT270 Cougar: Fender
· Steiger PTA251 Cougar: Fender
· Steiger PTA270 Cougar: Fender
· Steiger PTA280 Cougar: Fender
· Steiger PTA297 Panther: Fender
· Steiger PTA310 Panther: Fender
· Steiger PTA325 Panther: Fender
· Steiger Puma 1000 Series: Fender
· Steiger SM325 Panther: Fender
· Steiger ST220 Bearcat: Fender
· Steiger ST225 Bearcat: Fender
· Steiger ST250 Cougar: Fender
· Steiger ST251 Cougar: Fender
· Steiger ST270 Cougar: Fender
· Steiger ST280 Cougar: Fender
· Steiger ST310 Panther: Fender
· Steiger ST320 Panther: Fender
· Steiger ST325 Panther: Fender
· Steiger ST350 Panther: Fender
· Steiger Wildcat 1000 Series: Fender
