4" Round LED Flood Beam Grille Light for John Deere R Series Tractors, 3200 Lumens
8302258
Product Notes:

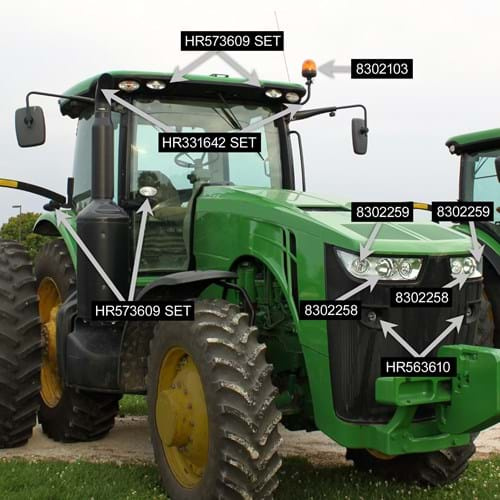

Large 4" round insert light for John Deere R Series Tractors. This does not replace the entire housing. Available in Headlight Kit 8302319, which also includes the 8302259 3-1/4" round grille light.
- Made with a durable polycarbonate lens & aluminum housing
- IP67 waterproof rating totally protects against dust as well as 3 ft of immersion
- Stainless steel hardware included
- LED lights use less energy and typically last 5x longer than halogen
- Backed by a 1-year warranty
- Recommended for off-road applications
Product Specs
- Amps (@12V): 3.3
- Beam Style: Flood
- Dimensions: 4.5"
- Diode Manufacturer: CREE
- Installation: Plug & Play Connection
- Lens Material: Polycarbonate
- New/Reman: New
- Raw Lumens: 3200
- Shape: Round
- Sold As: Each
- Volts: 9-32V
- Warranty: 1 Year
- Waterproof Rating: IP67
- Watts: 40
Cross Reference Numbers:
AL206153, AL206154, AL209454, RE288376, RE288377, RE296513, RE296514, RE331646, RE331647
Add To Cart
Make a selection to see related parts for that machine.
* See model notes below
Model Specific Notes:
· John Deere 6105M:
Interim Tier 4
· John Deere 6105R:
Interim Tier 4
· John Deere 6110M:
Final Tier 4
· John Deere 6110R:
Final Tier 4
· John Deere 6115M:
Interim Tier 4
· John Deere 6115R:
Interim Tier 4
· John Deere 6120M:
Final Tier 4
· John Deere 6120R:
Final Tier 4
· John Deere 6125M:
Interim Tier 4
· John Deere 6125R:
Interim Tier 4
· John Deere 6130M:
Final Tier 4
· John Deere 6130R:
Final Tier 4
· John Deere 6135M:
Final Tier 4
· John Deere 6135R:
Final Tier 4
· John Deere 6140M:
Interim Tier 4
· John Deere 6140R:
Interim Tier 4
· John Deere 6145M:
Final Tier 4
· John Deere 6145R:
Final Tier 4
· John Deere 6150M:
Interim Tier 4
· John Deere 6150R:
Interim Tier 4
· John Deere 6150RH:
Interim Tier 4
· John Deere 6155M:
Final Tier 4
· John Deere 6155R:
Final Tier 4
· John Deere 6155RH:
Final Tier 4
· John Deere 6170M:
Interim Tier 4
· John Deere 6170R:
Interim Tier 4
· John Deere 6175M:
Final Tier 4
· John Deere 6175R:
Final Tier 4
· John Deere 6190R:
Interim Tier 4
· John Deere 6195M:
Final Tier 4
· John Deere 6195R:
Final Tier 4
· John Deere 6210R:
Interim Tier 4
· John Deere 6215R:
Final Tier 4
· John Deere 6230R:
Final Tier 4
· John Deere 6250R:
Final Tier 4
· John Deere 7200R:
Prior to S/N 080000
· John Deere 7210R:
Eff. S/N 080001
· John Deere 7215R:
Prior to S/N 080000
· John Deere 7250R:
Eff. S/N 080001
· John Deere 7260R:
Prior to S/N 080000
· John Deere 7270R:
Eff. S/N 080001
· John Deere 7280R:
Prior to S/N 080000
· John Deere 7290R:
Eff. S/N 080001
· John Deere 7310R:
Eff. S/N 080001
· John Deere 8225R:
Eff. S/N 120000
· John Deere 8235R:
Eff. S/N 016001-090000
· John Deere 8245R:
Eff. S/N 090001
· John Deere 8260R:
Eff. S/N 016001-090000
· John Deere 8270R:
Eff. S/N 090001
· John Deere 8285R:
Eff. S/N 016001-090000
· John Deere 8295R:
Eff. S/N 090001
· John Deere 8310R:
Eff. S/N 016001-090000
· John Deere 8310RT:
Eff. S/N 902501-912000
· John Deere 8320R:
Eff. S/N 090001
· John Deere 8320RT:
Eff. S/N 912001
· John Deere 8335R:
Eff. S/N 016001
· John Deere 8335RT:
Eff. S/N 902501-912000
· John Deere 8345R:
Eff. S/N 090001
· John Deere 8345RT:
Eff. S/N 912001
· John Deere 8360R:
Eff. S/N 016001-090000
· John Deere 8360RT:
Eff. S/N 902501-912000
· John Deere 8370R:
Eff. S/N 090001
· John Deere 8370RT:
Eff. S/N 912001
· John Deere 8400R:
Eff. S/N 115000
